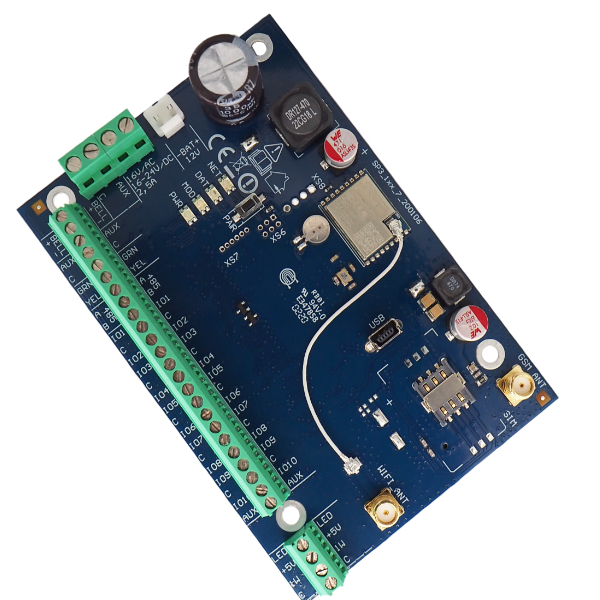

Security control panel FLEXi SP3

FLEXi is a hybrid security control panel with on-board WiFi and 4G, 2G or Ethernet connectivity. The unique feature set allows you to use this panel both in intrusion alarm and automation installations.

Adaptability and speed

Designed to combine the best features of TRIKDIS security control panels, communicators and controllers

Modifications

Tailored to individual cases, different connection requirements, and meets different user needs so you will make a great solution every time.

4G + WiFi

FLEXi can be ordered with 2G or 4G modems.

WiFi should be used as the primary channel. If it stops working, connection will switch automatically to cellular.

Ethernet + WiFi

FLEXi makes it possible to use redundant Internet connection by connecting to networks of two independent communications providers: the main — via WiFi, and the backup — via Ethernet. If connection of one provider fails, the security panel will stay connected.

WiFi

It is not necessary to lay a IP cable for connection to the router. The control panel is ready to operate straight out the box.

Remote control

Offer your clients a self-service app without investing in its development. This will increase the value and appeal of your company’s security services.

More info

Optional notifications:

Accessories

Discover more customization and adaptability options

Compatible temperature sensors

Maxim®/Dallas® DS18S20, DS18B20; AM2301 series

Keypads

"Trikdis" SK232LED;
„Paradox“ K636, K10H(V) K32+LED, K32LED, K35, TM70 / TM 50;
„Crow“ CR16, CR-LCD, KP- Touch Screen;
CZ-Dallas iButton key scanner;
RFID reader (Wiegand 26/34).

Expansion modules

With iO-8 FLEXi obtains 32 zones and 16 OUTs.

T16 VHF or UHF radio transmitter, Sigfox module

With additional modules, messages can be sent via VHF / UHF radio and Sigfox communication channels.

Contact us

Find out more by contacting our team

Contact us

Features

Reporting to the security company‘s central monitoring station (CMS):

  • Event reporting either via the built-in WiFi module or cellular 2G/4G modem.
  • Additional modules to send reports via Ethernet or VHF/UHF radio waves with chosen priority.
  • Any CMS can receive reports, as long as they have TRIKDIS software/IP receiver or any other manufacturer’s IP receiver supporting SIA DC-09 IP protocol.
  • Design based on two decades of experience in transmitting reports to main and backup central monitoring station receivers, which allows security companies to provide the highest level of protection to premises
  • A setting for necessity to send to CMS, to mandatorily send reports to CMS first, and only then to customers.
  • Possibility to send event reports to CMS of two different security companies.
  • Multitude number of message transmission channels and multiple transmission priority settings.

Reporting to user:

  • Via Protegus mobile app, which gives warnings about alarm system events using push and special sound notifications.
  • Event reporting via SMS messages to 8 cellular numbers.
  • Reporting about events using pre-recorded voice notifications (up to 8 cellular numbers).
  • Remote control of selected premises’ protection mode (Arm/Disarm/Stay/Sleep).
  • Remote control of connected devices (lighting system, automatic gates, ventilation, heating, watering systems, etc.).
  • Remote temperature measuring.

Inputs and outputs:

  • 10 I/O terminals, each one can be set as an input (IN) or output (OUT). Input (IN) types: ATZ, EOL, NC, NO. Different parameters of resistors can be used in EOL and ATZ type circuits. The number of inputs IN can be expanded to 32 by using keypads, iO-8 and iO-WL expander modules.
  • The board has 2 dedicated outputs: the bell and the LED. The bell is to control the siren, and the LED is to control indicator lights. The number of outputs can be expanded to 16 by using iO-8 and iO-WL expander modules.
  • Seven output operational settings. Each output can be assigned with an operational logic, a preset operation schedule or qualities, for example, thermostat mode.
  • One-wire data bus (“1-Wire”) is designated to connect temperature sensors (up to 8), a temperature and humidity sensor (1) or a key fob (“iButton”) reader.
  • The GRN-YEL data bus is designated to connect 8 keypads of the same type.
  • The RS485 data bus connects iO series expander modules: RF-SH radio wave wireless sensor transceiver, E485 Ethernet module, T16 VHF or UHF radio wave transmitter.

Control of alarm system

  • 4-digit long control codes (40 in total), which may be used as a coercion code as well. In such scenario, entering the user code will disarm the alarm, yet a special report will be sent to the CMS indicating that the alarm was disarmed as a result of coercion.
  • Control using keypads: SK232LED, Paradox K636, K10H(V) K32+LED, K32LED, K35, Crow keypad CR16, CR-LCD, CZ-Dallas electronic (“iButton”) key reader, TM17 electronic key reader, RFID reader (Wiegand 26/34).
  • Remote control via Protegus mobile app, phone call or SMS.

Simple installation:

  • Multiple sizes of SP3 mounting kits that include a decorative white metal housing with a built-in step-down transformer or impulse power supply.
  • Default SP3 operational settings are based on many years of experience. That allows to install the system in 7 out of 10 small and medium-sized premises without the need to change the default settings.
  • The SP3 control panel allows to replace the previous panel without changing the resistors in each wired sensor.
  • Settings can be saved as a file to be used later.
  • Device configuration via USB cable or remotely by using TrikdisConfig
  • Remote connection via TrikdisConfig software allows not only altering SP3 parameters but monitoring the operation of the panel as well.
  • Two access levels for parameter settings: installer and administrator.

Specifications

ParameterDescription
Power supply voltage[AC / DC]16 V DC or 16-24 V, 2,5 A AC
Current consumptionUp to 50 mA (stand-by),

Up to 200 mA (short-term, while sending)

Backup power source [BAT]12 V lead – acid battery, 4 Ah/7 Ah
Battery charge currentUp to 500 mA
Power voltage and current for external devices [AUX]12 V DC, up to 1 A
Siren output [BELL]1 A
Output [LED]0,1 A
PGM output0,1 A
WiFi moduleYes, built-in
WiFi frequency, protocol, encryption type2,4 GHz, 802.11 b/g/n, WPA, WPA2, WPA mixed
WiFi network configuration typeDHCP or manual
SIM card1, NANO size
GSM/GPRS modem frequencies850 / 900 / 1800 / 1900 MHz
4G modem frequencies800 / 850 / 900 / 1900 / 2100 MHz
Report transmission directions–  To main and backup receivers of 2 different security companies;

–  To Protegus cloud, to iOS/Android Protegus mobile apps;

–  To 8 mobile phones via SMS messages.

Calls 8 mobile phones. If a user answers the call, announces what happened using voice.

Event reporting transmission channelsGPRS or 4G, WiFi, LAN (with module E485), SMS, Voice call, VHF/UHF radio waves (with transmitter T16)
Protocols for connection to CMSTCP / IP or UDP / IP, or SMS
Event encodingContact ID codes
Report encryptionTRK AES 128, SIA IP AES 128
Internal clockYes
Buffer memory capacity60 events
Events log memoryUp to 1000 events. Oldest entries deleted automatically.
User codes40
Duress codeTwo code entry methods can be chosen during programming
Dual purpose terminals [I/O]10; IN or OUT function selected during programming. When IN is selected, available types: NC, NO, EOL, EOL_T, ATZ, ATZ_T. When OUT is selected, the terminal becomes open collector (OC) type with up to 100 mA current
No. of partitions8
No. of zones10 (20 zones if using ATZ), (can be expanded to 32 zones using expanders)
No. of PGM outputs2 (can be 12 if IO terminals are set as outputs. Can be expanded to 16 outputs with expanders)
Max. number of connected keypads8
Supported keypadsProtegus SK232 LED B/W

Paradox K636

Paradox K10H(V)

Paradox K32 LED

Paradox K32+ LED

Paradox K35

Crow CR16

Crow CR-LCD

Max. number of RFID readers (Wiegand 26/34)2
1-Wire data bus length [1 WIRE]Up to 30 m
Compatible temperature sensorsMaxim®/Dallas® DS18S20, DS18B20; AM2301 series
Max. number of temperature sensors connected to 1-Wire data bus8 (Dallas) or 1 (if an AM2301 series sensor is used)
Compatible electronic (iButton) keys [1 WIRE]Maxim®/Dallas® DS1990A
Max. no. of electronic (iButton) keys40
RS485 data bus lengthUp to 100 m
Max. no. of devices connected to RS485 data bus8
Supported modulesiO-8 – expander module;

iO – expander module;

iO-MOD – iO-WL radio wave transceiver;

iO-WL – wireless expander module;

RF-SH – radio wave receiver for wireless sensors;

E485 – module for connecting to Ethernet network;

TM17 – iButton key reader;

CZ-Dallas – iButton key reader;

T16 – VHF or UHF radio wave transmitter;

RFID reader.

Operating environmentTemperature from -10 °C to +50 °C, relative humidity 80% at +20°C, no condensation.
Dimensions of the control panel117x79x25 mm
Weight0,1 kg

Compatible modules

Module nameCurrent
Keypad Protegus SK232 LED B/WMin 60 mA, max 150 mA
Keypad Paradox K636Min 40 mA, max 70 mA
Keypad Paradox K10H(V)Min 44 mA, max 72 mA
Keypad Paradox K32 LEDMin 49 mA, max 148 mA
Keypad Paradox K32+ LEDMin 49 mA, max 148 mA
Keypad Paradox K35Min 30 mA, max 70 mA
Keypad Crow CR16Min 40 mA, max 75 mA
Keypad Crow CR-LCDMin 40 mA, max 75 mA
iO-8 expander moduleMax 20 mA
iO expander moduleMax 50 mA
iO-MOD – iO-WL radio wave transceiverMin 50 mA, max 150 mA
iO-WL wireless expander moduleMax 200 mA
RF-SH transceiver for wireless sensorsMax 100 mA
E485 Ethernet communicatorMin 50 mA, max 150 mA
TM17 iButton key readerMax 50 mA
CZ-Dallas iButton key readerMax 25 mА
T16 (VHF or UHF) radio wave transmitterMin 100 mA, max 1,2 A
RFID reader (Wiegand 26/34)Max 100 mA
