Smart technology for retrofiting

Replace any alarm panel without changing resistors in each sensor. In TrikdisConfig you can set what resistor nominal value is used with FLEXi. This saves a lot of time during a retro-fit installation.

Read more

FLEXi expandable up to 32 zones and up to 16 OUTs. Also add additional VHF/UHF band radio or SigFox channel and achieve reliable multi-path communication.

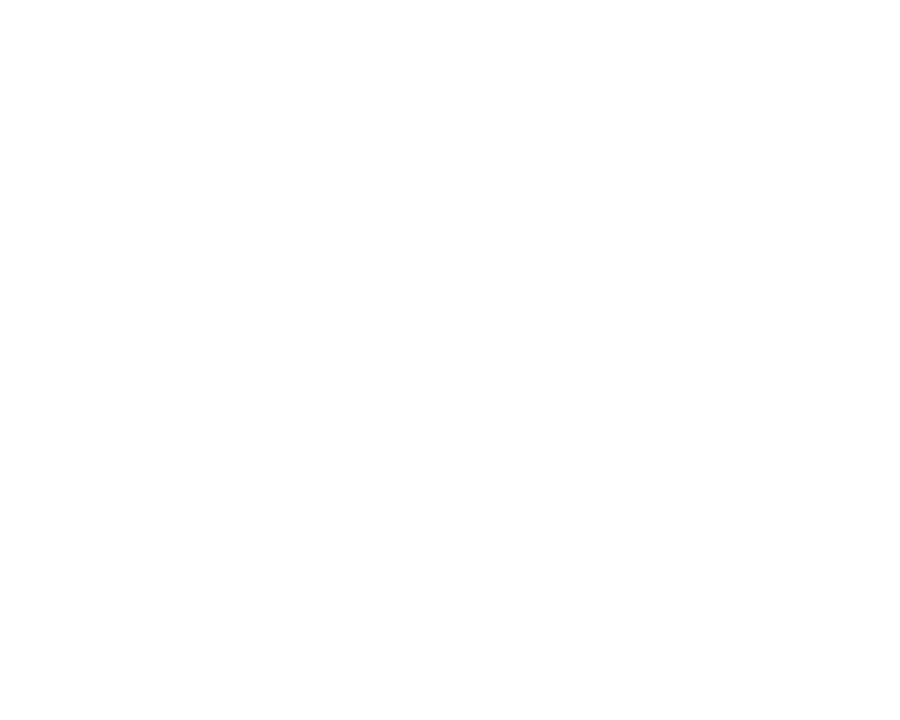

FLEXi is a hybrid security control panel with onboard WiFi and 4G2G or Ethernet connectivity. The unique feature set allows you to use this panel both in intrusion alarm and automation installations.

Monitor security system, control it remotely, and get real-time notifications.

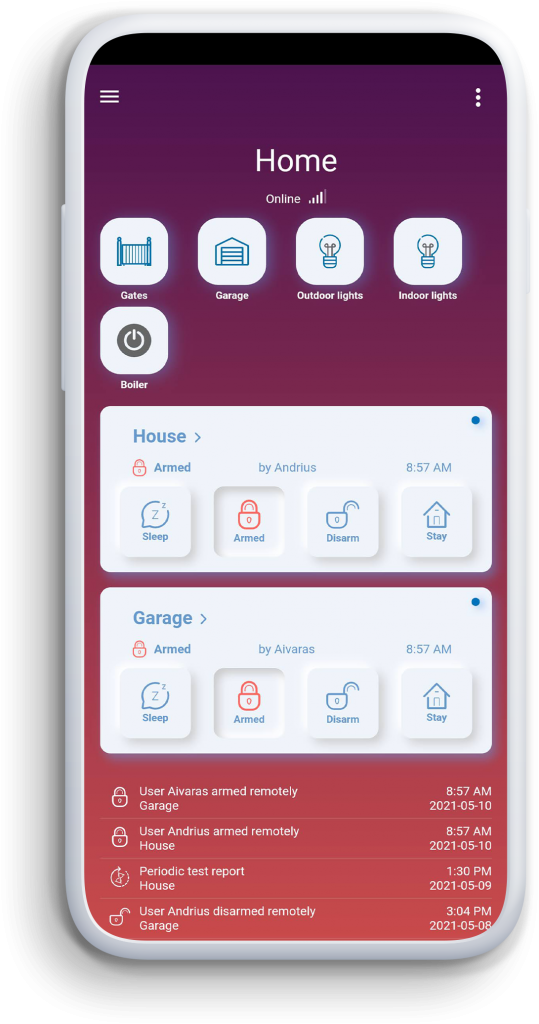

Protegus 2 is a home monitoring app that provides peace of mind by both securing and monitoring your property. Once activated, it records and sends you real-time alerts if an intruder breaks in, nearby emergency situations, and live video streams from your house when things get interesting. Linking to a mobile app means you can take action from anywhere in the world. Protect what matters most from the comfort of wherever life takes you.

Learn more Start journey

Remote programing

The app Protegus 2 now has a new Advanced settings feature. It has been created with the aim to make everyday work easier by integrating all TrikdisConfig features in one simple app.

More about

Become FLEXi installer

Accelerate the growth of your business. Become an FLEXi member and stay informed, up to date and ahead of your competition.

Let’s start the journey





    Technical Specifications

    Dimensions and Weight of the control panel

    117x79x25 mm

    0,1 kg

    System

    No. of partitions:
    8

    No. of zones:
    10 (20 zones if using ATZ), (can be expanded to 32 zones using expanders)

    No. of PGM outputs:
    2 (can be 12 if IO terminals are set as outputs. Can be expanded to 16 outputs with expanders)

    Max. number of connected keypads:
    8

    Supported keypads:
    Protegus SK232 LED B/W
    Paradox K636
    Paradox K10H(V)
    Paradox K32 LED
    Paradox K32+ LED
    Paradox K35
    Crow CR16
    Crow CR-LCD

    Dual purpose terminals [I/O]:
    10;
    IN or OUT function selected during programming. When IN is selected, available types: NC, NO, EOL, EOL_T, ATZ, ATZ_T. When OUT is selected, the terminal becomes open collector (OC) type with up to 100 mA current

    Supported keypads:
    Protegus SK232 LED B/W
    Paradox K636
    Paradox K10H(V)
    Paradox K32 LED
    Paradox K32+ LED
    Paradox K35
    Crow CR16
    Crow CR-LCD

    Power and Battery

    Power supply voltage[AC / DC]:
    16 V AC or 16-24 V DC, 2,5 A

    Current consumption:
    Up to 50 mA (stand-by),
    Up to 200 mA (short-term, while sending)

    Backup power source [BAT]:
    12 V lead – acid battery, 4 Ah/7 Ah

    Battery charge current
    Up to 500 mA

    Power voltage and current for external devices [AUX]:
    12 V DC, up to 1 A

    Siren output [BELL]:
    1 A

    Output [LED]:
    0,1 A

    PGM output:
    0,1 A

    Communication

    WiFi frequency, protocol, encryption type:
    2,4 GHz, 802.11 b/g/n, WPA, WPA2, WPA mixed

    WiFi network configuration type:
    DHCP or manual

    4G modem frequencies:
    800 / 850 / 900 / 1900 / 2100 MHz



    Report transmission directions:
    –  To main and backup receivers of 2 different security companies;
    –  To Protegus cloud, to iOS/Android Protegus mobile apps;
    –  To 8 mobile phones via SMS messages.Calls 8 mobile phones. If a user answers the call, announces what happened using voice.

    Event reporting transmission channels:
    GPRS or 4G, WiFi, LAN (with module E485), SMS, Voice call, VHF/UHF radio waves (with transmitter T16)



    Protocols and Encryption

    Protocols for connection to CMS:
    TCP / IP or UDP / IP, or SMS

    Event encoding:
    Contact ID codes

    Report encryption:
    TRK AES 128, SIA IP AES 128



    Report transmission directions:
    –  To main and backup receivers of 2 different security companies;
    –  To Protegus cloud, to iOS/Android Protegus mobile apps;
    –  To 8 mobile phones via SMS messages.Calls 8 mobile phones. If a user answers the call, announces what happened using voice.

    Event reporting transmission channels:
    GPRS or 4G, WiFi, LAN (with module E485), SMS, Voice call, VHF/UHF radio waves (with transmitter T16)
