Specifications

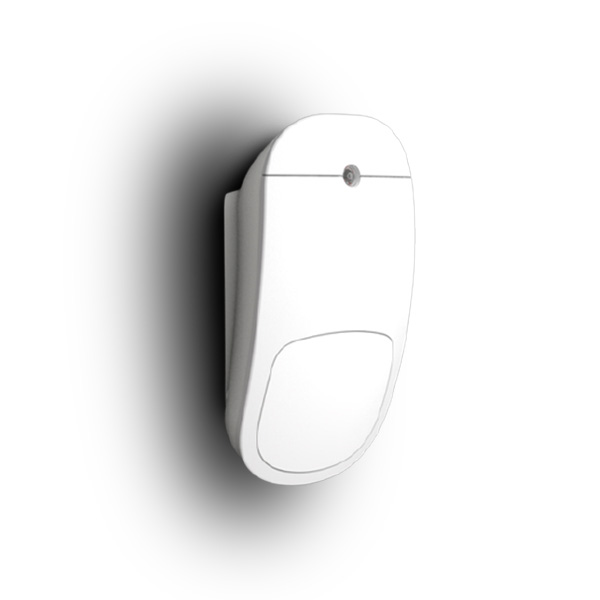

| Detection Method | Quad Pyro Element Sensor |
| Communication Protocol | Freewave2™ two-way ISM GFSK with 5 frequencies & LBT |
| Operating Frequencies | 868MHz or 916MHz |
| Identification | Unique ID serial number – 24 bit |
| Events Transmission | Alarm, Tamper, Supervision, Low Bat, Keep Alive. |
| Supervision Time | 7 min by default (configurable between 1 to 30 min) |
| Communication Range | 500m open space |
| Battery | 3V Lithium CR123A |
| Battery Life | Up to 10 Years |
| Current Consumption | Average Current : 15uA Transmit current: ~55mA |
| Tamper Switch | Front Cover and Wall Removal |
| Operating Temperature | -10°C to +50°C |
| Dimensions/ Weight | 112mm x 58mm x 45mm / 120 gr. |
| Compliance | EN50131 Security Grade 2 Class II |
